Name: 3 piece stainless steel ball valves 711 XS + RE/RES pneumatic actuator
SKU: 2085
Price: 996.08571428571 EUR
Availability: InStock

3 piece stainless steel ball valves 711 XS + RE/RES pneumatic actuator

€996.09 (excl. btw)

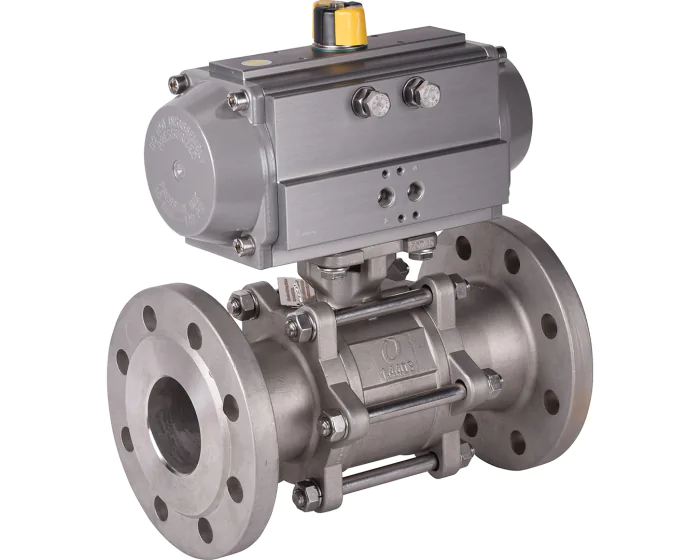

The 711 XS series 3-piece body ball valve has a 1.4408 stainless steel body and ball and PTFE/stainless steel seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 40 bar, TS: 200°C.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
Option certificate 3.1	Yes
Maximum delta P (bar)	10
Operating angle (°)	90
Shaft/stem matérial	Stainless steel 316
Adjustable limit screws	Yes
ATEX compatible	Yes
DN	DN65 - 2''1/2
Face to Face (mm)	290.0
Body material	Stainless steel CF8M (1.4408)
ATEX protection mode	Ex c
Number of ways	2
Bore	Full
Packing gland	Graphite
PS (bar)	40
Connections	Flanged PN40
Seats	PTFE-Stainless steel
Ball material	Stainless steel 316
Surface temperature	TX
TS max (°C)	200
TS min (°C)	-30
Pneumatic actuator type	Double acting
Ball valve design	3-piece body
ATEX zone	1.21.2.22
Warranty period	1 year
CE	Risk category III
Range	Industry
Fire safe	Yes

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
2086	Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Double acting	272108017008R	S1002035	€996.09 (excl. btw)	add to cart
2087	Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Spring return	272108017110R	S1002036	€1,156.27 (excl. btw)	add to cart
2088	Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Double acting	272109017009R	S1002037	€1,326.00 (excl. btw)	add to cart
2089	Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Spring return	272109017111R	S1002038	€1,538.16 (excl. btw)	add to cart
2090	Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Double acting	272110017010R	S1002039	€1,911.56 (excl. btw)	add to cart
